AFM Diamond Knife
Extremely smooth sample surfaces
Best possible structure preservation

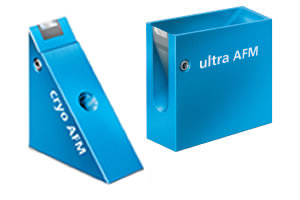

cryo AFM
ultra AFM
The high quality Diatome diamond knives
are not just perfect for producing ultrathin
and semi-thin sections, but also for
surfacing sectioning of all kinds of biological
and industrial specimens for AFM
investigation.
Instead of a section as for TEM, the specimen
surface is investigated using AFM.
In order to achieve the best results for
AFM investigation, only the highest quality
diamond knives should be used.
Diatome ultra AFM and cryo AFM knives
are specially tested to ensure that they
meet the increased quality requirements of
AFM investigation.
They produce extremely smooth sample
surfaces and guarantee the best possible
structure preservation.
Images

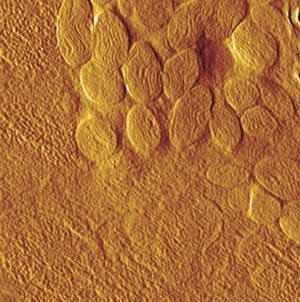

Top image: AFM amplitude image of the muscle of cat's
mite Otodectes cynotis. The contrast covers
amplitude variation in the 1-3nm range. Size of
the whole image equals 4.6microns.
Nadejda Borisovna Matsko, Institut für angewandte Physik, ETH Zürich.

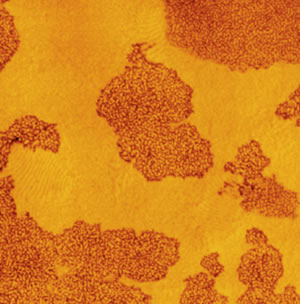

Bottom image: Morphology of a blend of two SBS block copolymers with different chain-architecture.
AFM tapping mode, phase image, image size = 3x3μm.
Rameshwar Adhikari, Institut für Werkstoffwissenschaft, Martin-Luther-Universität, Halle-Wittenberg.
To view additional images, please
visit the Gallery.
References
P.H. Vallotton, M.M. Denn, B.A. Wood
and M.B. Salmeron: Comparison of
medical-grade ultrahigh molecular weight
polyethylene microstructure by AFM and
TEM.
J. Biomater. Sci. Polymer Edn., Vol 6,
No. 7, pp. 609-620, 1994.
N. Matsko and M. Müller: AFM of biological
material embedded in epoxi resin.
Journal of Structural Biology 146,
pp. 334-343, 2004.
Ordering Information
Diamond Knives can be ordered online using a credit card or purchase order number
for payment. Click
to order an AFM Diamond Knife.
Diamond Knives can be ordered by phone at 215-412-8390 or fax 215-412-8450.
